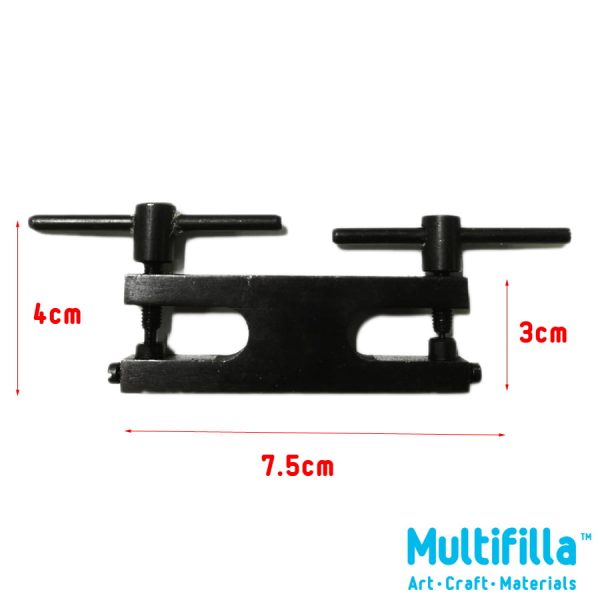

Screw punching of hole in non ferrous metal in thickness of 1.6 and 2.3 mm. Suitable for pendant, dog tag, leather hole punching. Gradual turning of screw shear punch a clean neat hole in plastic, styrene too. Clamp tool on a table vise clamp to use. Punches 1.5mm diameter hole. The other side is to set tube rivet diameter 2.8mm
Tool hole punch and rivet setter is for cold riveting of metal plates in costume jewellery designing and miniature metal crafts scale modelling. Tube rivets or rod rivets in brass or copper enhances rustic crafts beauty. To round copper/brass rod as a rivet, use an appropriate hole size in the rivetting stake. Insert rod into the close fitting stake hole, cut 1mm to 2mm above hole leaving sufficient metal to round off by hammering into a half sphere dome rivet head.
To set tube rivet, insert the tube rivet into the prepunch hole on the metal plates, adjust position for slow screw down of the setter to flare the tube rivet to secure as in cold riveting.
