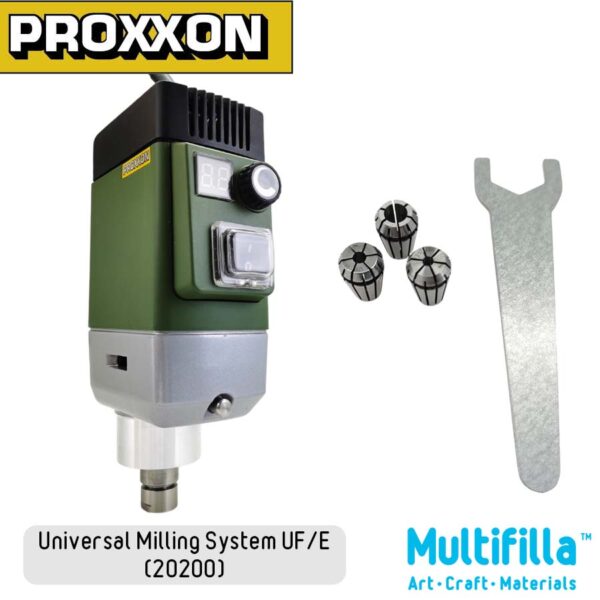

Universal milling system UF/E

230V-operation (no additional controller needed).

Variable speed pre-selection from 10,000 to 30,000rpm and digital speed indication. The sophisticated control via rotor position and speed sensors guarantees high torque also in the lower speed range. Machine base made of die-cast aluminium with 20mm MICROMOT standard collar and 43mm European standard spindle collar. Triple ball bearing spindle for high concentric accuracy and smooth running. Quiet running too.

This drive unit with 2 collar sizes 20mm to mount on Proxxon drill stand MB200. The other collar  size 43mm will mount on BFB 2000 mill drill stand. Maintenance free brushless DC motor have variable digital speed indicator suited for precision drilling and milling.

Technical data:
230V. 50/60Hz. 250W. 10,000 – 30,000rpm. Weight 1,200g. Includes three ER11 collets according to DIN/ISO in sizes 2.5 – 3.2 (1/8″) and 6mm.

NO 20 200
