Click to enlarge
Dolomite – 5kg RM20.00
Back to products
Lithium Carbonate 1kg RM150.00

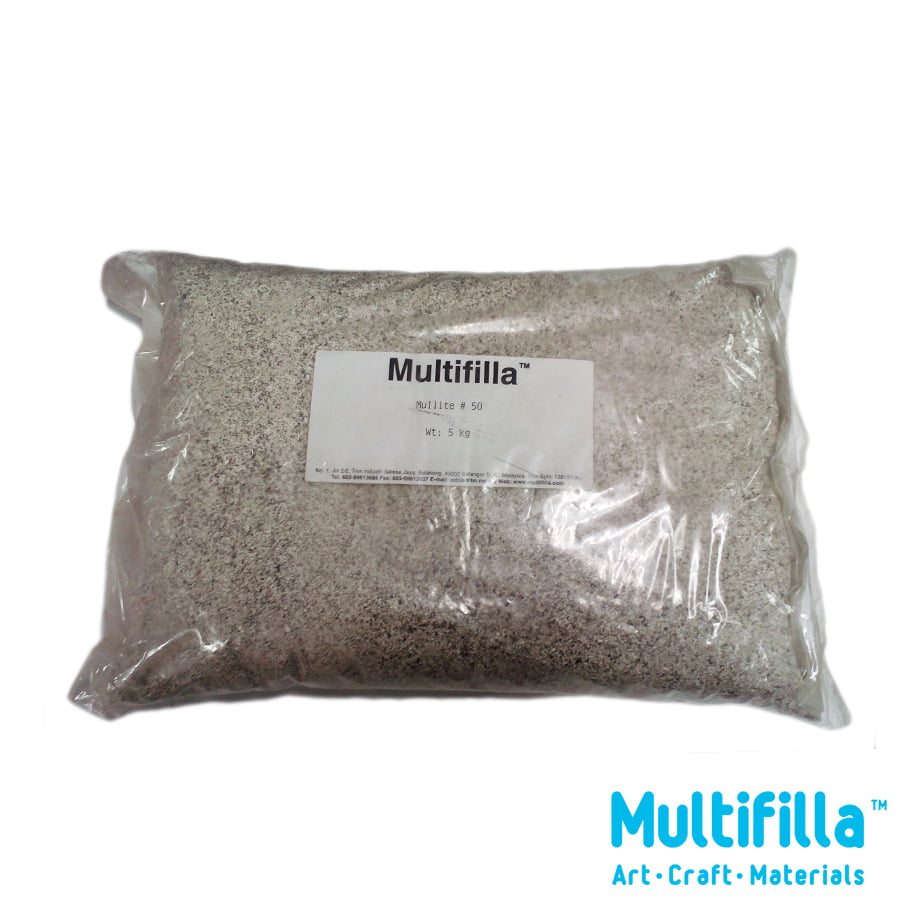

Mullite Coarse G50 – 5kg

RM40.00

Please request quote from enquiry@multifilla.com for 25kg packing.

Sizes: 5kg and 25kg

In stock

Add to wishlist
SKU: 88004859 Categories: , , , , ,
Description

Many use for this coarse mullite with cement binder to insulate heating pipes, formulated coating for welding arc electrodes. Thermal shock resistant ceramic wares. Knife and sword forgers find mullite and fine clay binder mixture as clay tempering to create hamon designs commonly found in Japanese katana.

Available in fine #325 and coarse #50.

Mullite Ceramic Properties

Mullite is a good, low cost refractory ceramic with a nominal composition of 3Al2O3•2SiO2. The raw materials for mullite are easily obtainable and are reasonably priced. It has excellent high temperature properties with improved thermal shock and thermal stress resistance owing to the low thermal expansion, good strength and interlocking grain structure.

.Key Mullite Properties
check Good thermal shock and stress resistance
check Low thermal conductivity
check Good strength
check Wear resistant
check Usable to high temperatures

Typical Mullite Uses
check Protection tubes
check Furnace liners
check Electrical insulators

Download Mullite datasheet

Mullite Engineering Properties*

Mullite — Cast and Extruded
Mechanical

Units of Measure

SI/Metric

(Imperial)
Density

gm/cc (lb/ft3)

2.8

(175)
Porosity

% (%)

0

0
Color

—

off-white

off-white
Flexural Strength

MPa (lb/in2x103)

180

(26)
Elastic Modulus

GPa (lb/in2x106)

151

(22)
Shear Modulus

GPa (lb/in2x106)

—

—
Bulk Modulus

GPa (lb/in2x106)

—

—
Poisson’s Ratio

—

—

—
Compressive Strength

MPa (lb/in2x103)

1310

(190)
Hardness

Kg/mm2

1070

—
Fracture Toughness KIC

MPa•m1/2

2

—
Maximum Use Temperature
(no load)

°C (°F)

1650

(3000)


Thermal
Thermal Conductivity

W/m•°K (BTU•in/ft2•hr•°F)

6

(42)
Coefficient of Thermal Expansion

10–6/°C (10–6/°F)

5.4

(3)
Specific Heat

J/Kg•°K (Btu/lb•°F)

—

—


Electrical
Dielectric Strength

ac-kv/mm (volts/mil)

9.8

(245)
Dielectric Constant

@ 1 MHz

5.8

5.8
Dissipation Factor

@ 1 kHz

0.003

0.003
Loss Tangent

—

—

—
Volume Resistivity

ohm•cm

>1013

>1013

*All properties are room temperature values except as noted.
The data presented is typical of commercially available mullite and is offered for comparative purposes only. The information is not to be interpreted as absolute material properties nor does it constitute a representation or warranty for which we assume legal liability. User shall determine suitability of the material for the intended use and assumes all risk and liability whatsoever in connection therewith.


Additional information
Weight 5.3 kg
